YBX3系列隔爆型(ExdIIBT4)三相異步電動機(機座號80~355)具有效率高,噪聲低,振動小,堵轉轉矩高,運行可靠,外形美觀等特點,是使用在石油、化工、煤炭工業中的重要電工產品之一。

該系列電機的隔爆性能符合GB3836.1-2010《爆炸性環境 第1部分:設備 通用要求》和GB3836.2-2010《爆炸性環境 第2部分:由隔爆外殼“d” 保護的設備》的規定。產品的機械電氣性能符合JB/T 12628-2016《YBX3系列高效率隔爆型三相異步電動機技術條件(機座號63~355)》。

YBX3系列隔爆型三相異步電動機額定電壓380V、660V、380/660V,額定頻率50Hz,防護等級IP55,冷卻方法IC411,采取F級絕緣,滿載溫升按B級考核,適用于煤礦井下(非采掘工作面)及工廠含有的符合上述標準中規定的爆炸性氣體混合物的作業場所電力拖動。

我公司可以在符合上述標準的條件下,按用戶要求設計、制造各種電壓、各種頻率、各種安裝方式的電動機產品,如220V、440V電壓,60Hz頻率。

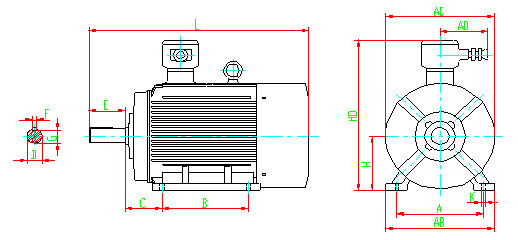

YBX3系列ExdIIBT4高效率隔爆型三相異步電動機安裝及外形尺寸


THE DIMENSIONS OF MOUNTING AND CONTOUR FOR YBX3 SERIES ExdIIBT4 FLAMPROOF MOTORS
機座號 Frame size極數    Poles安裝尺寸(毫米)Mounting dimension(mm)外形尺寸(毫米)Contour dimension(mm)
HABCDEFGKABACADHDL
80M2、4、6、880125100501940615.510165165180320340
90S9014010056245082010180180180350380
90L9014012556245082010180180180350410
100L10016014063286082412200205180400473
112M11219014070286082412245230200420520
132S132216140893880103312280270200450570
132M132216178893880103312280270200450615
160M16025421010842110123714.5330325220520755
160L16025425410842110123714.5330325220520795
180M180279241121481101442.514.5355360220550806
180L180279279121481101442.514.5355360220550806
200L20031830513355110164918.5390400250645865
225S4、822535628614960140185318.5435450250690913
225M222535631114955110164918.5435450250690923
225M4、6、822535631114960140185318.5435450250690953
250M225040634916860140185324490500300730995
250M4、6、825040634916865140185824490500300730995
280S2280457368190651401858245455603008101047
280S4、6、8280457368190751402067.5245455603008101047
280M2280457419190651401858245455603008101122
280M4、6、8280457419190751402067.5245455603008101122
315S23155084062166514018582864063040010201320
315S4、6、8、103155084062168017022712864063040010201350
315M23155084572166514018582864063040010201350
315M4、6、8、103155084572168017022712864063040010201380
315L23155085082166514018582864063040010201490
315L4、6、8、103155085082168017022712864063040010201520
355S2355610500254751402067.52874075050010801570
355S4、6、8、103556105002549517025862874075050010801570
355M2355610560254751402067.52874075050010801650
355M4、6、8、103556105602549517025862874075050010801650
355L2355610630254751402067.52874075050010801750
355L4、6、8、103556106302549517025862874075050010801750
  注:1.圖為B3型圖樣,機座帶底腳,端蓋上無凸緣。
        2.H80-90無吊環。
Note:1.The drawing is B3 type with frame but no flange.
           2.H80-90 have no lifting bolts.




YBX3系列ExdIIBT4高效率隔爆型三相異步電動機技術數據


THE TECHNICAL SPECIFICATIONS OF YBX3 SERIES ExdIIBT4 FLAMEPROOF MOTORS
型號額定功率

電流

(安培)

轉速

(轉/分)

效率

(%)

功率因數

Cosφ

 最大轉矩 堵轉轉矩

堵轉電流

噪音

限值

振動限值

(毫米/秒)

重量

(千克)

千瓦馬力 額定轉矩 額定轉矩 額定電流
TypeRated Output

Curren

 (A)

Spee

 (r/min)

Eff. (%)

Power

 Facto

r(Cosφ

Max

Torque

Locked

 Torque

Locked

Current

Noise    Limit

dB(A)

Vibration    Limit

(mm/s)

Weight (Kg)
KWHP

Rated

 Torque

Rated

Torque

Rated

Current

YBX3-80M1-20.7511.70285080.70.832.32.36.8671.629
YBX3-80M2-21.11.52.43284082.70.832.32.37.3671.631
YBX3-90S-21.523.22285084.20.842.32.37.6721.636
YBX3-90L-22.234.58289085.90.852.32.37.8721.639
YBX3-100L-2346.02287087.10.872.32.38.1761.647
YBX3-112M-245.57.84289088.10.882.32.38.3771.660
YBX3-132S1-25.57.510.6290089.20.882.32.28.0801.695
YBX3-132S2-27.51014.2290090.10.892.32.27.8801.6100
YBX3-160M1-2111520.6294091.20.892.32.27.9862.2149
YBX3-160M2-2152027.9294091.90.892.32.28.0862.2158
YBX3-160L-218.52534.2294092.40.892.32.28.1862.2180
YBX3-180M-2223040.5295092.70.892.32.28.2882.2212
YBX3-200L1-2304054.9294593.30.892.32.27.5902.2284
YBX3-200L2-2375067.4294593.70.892.32.27.5902.2299
YBX3-225M-2456081.7296094.00.892.32.27.6922.2367
YBX3-250M-2557599.6297094.30.892.32.27.6922.2486
YBX3-280S-275100135297094.70.892.32.06.9942.2645
YBX3-280M-290125162297095.00.892.32.07.0942.2725
YBX3-315S-2110150197297595.20.892.21.97.1962.81024
YBX3-315M-2132175236297595.40.892.21.97.1962.81145
YBX3-315L1-2160220286297595.60.892.21.97.1982.81239
YBX3-315L2-2200270356297595.80.892.21.97.1982.81328
YBX3-355S1-2185250330298095.60.892.21.97.1982.81712
YBX3-355S2-2200270356298095.80.892.21.97.1982.81785
YBX3-355M1-2220300392298095.80.892.21.87.11002.81995
YBX3-355M2-2250350441298095.80.902.21.87.11002.82163
YBX3-355L1-2280380493298095.80.902.21.87.11002.82626
YBX3-355L2-2315425555298095.80.902.21.87.11002.82783
YBX3-80M1-40.550.751.43139077.80.752.32.36.3581.631
YBX3-80M2-40.7511.84139082.50.752.32.36.5581.632
YBX3-90S-41.11.52.65139084.10.752.32.36.6611.636
YBX3-90L-41.523.56139085.30.752.32.36.9611.641
YBX3-100L1-42.234.76142086.70.812.32.37.5641.648
YBX3-100L2-4346.34142087.70.822.32.37.6641.653
YBX3-112M-445.58.37143088.60.822.32.37.7651.659
YBX3-132S-45.57.511.4145089.60.822.32.07.5711.695
YBX3-132M-47.51015.2145090.40.832.32.07.4711.6111
YBX3-160M-4111521.5146091.40.852.32.07.5752.2155
YBX3-160L-4152029.1146092.10.852.32.07.5752.2178
YBX3-180M-418.52535.3147092.60.862.32.07.7762.2213
YBX3-180L-4223041.8147093.00.862.32.07.8762.2236
YBX3-200L-4304056.0147093.60.872.32.07.2792.2315
YBX3-225S-4375068.8148093.90.872.32.07.3812.2340
YBX3-225M-4456083.4148094.20.872.32.07.4812.2378
YBX3-250M-45575100148094.60.882.32.07.4832.2511
YBX3-280S-475100136148095.00.882.32.06.7862.2664
YBX3-280M-490125161148095.20.892.32.07.0862.2774
YBX3-315S-4110150197148095.40.892.22.07.0932.81034
YBX3-315M-4132175236148095.60.892.22.07.0932.81218
YBX3-315L1-4160220285148095.80.892.22.07.0942.81286
YBX3-315L2-4200270356148096.00.892.22.07.0942.81386
YBX3-355S1-4185250330148895.80.892.22.07.0942.81785
YBX3-355S2-4200270356148896.00.892.22.07.0942.81890
YBX3-355M1-4220300391148896.00.892.22.07.0952.82116
YBX3-355M2-4250350445148896.00.892.22.07.0952.82150
YBX3-355L1-4280380498148896.00.892.22.07.0952.82720
YBX3-355L2-4315425560148896.00.892.22.07.0952.82909
YBX3-80M1-60.370.51.3089062.00.702.01.94.7541.624
YBX3-80M2-60.550.751.5889073.60.722.11.94.7541.625
YBX3-90S-60.7512.0191078.90.722.12.15.8571.637
YBX3-90L-61.11.52.8391081.00.732.12.15.9571.639
YBX3-100L-61.523.7393082.50.742.12.16.0611.647
YBX3-112M-62.235.3694084.30.742.12.16.0651.660
YBX3-132S-6347.2097085.60.742.12.06.2691.692
YBX3-132M1-645.59.4697086.80.742.12.06.8691.6103
YBX3-132M2-65.57.512.797088.00.752.12.07.1691.6115
YBX3-160M-67.51016.497089.10.782.12.16.7732.2151
YBX3-160L-6111523.797090.30.782.12.16.9732.2181
YBX3-180L-6152030.998091.20.812.12.07.2732.2225
YBX3-200L1-618.52537.897891.70.812.12.17.2762.2263
YBX3-200L2-6223044.297892.20.822.12.17.3762.2294
YBX3-225M-6304060.698092.90.812.12.07.1762.2349
YBX3-250M-6375071.798093.30.842.12.17.1782.2491
YBX3-280S-6456084.899093.70.862.02.17.2802.2636
YBX3-280M-6557510399094.10.862.02.17.2802.2698
YBX3-315S-67510014298594.60.852.02.07.0852.8977
YBX3-315M-69012517298594.90.842.02.07.0852.81092
YBX3-315L1-611015020798595.10.852.02.07.0852.81187
YBX3-315L2-613217524498595.40.862.02.07.0852.81292
YBX3-355S-616022029298595.60.872.01.97.0922.81991
YBX3-355M1-618525033898595.60.872.01.97.0922.82048
YBX3-355M2-620027036598595.80.872.01.97.0922.82090
YBX3-355L1-622030040198595.80.872.01.97.0922.83024
YBX3-355L2-625035045698595.80.872.01.97.0922.83056
YBX3-80M1-80.180.250.8865051.00.611.91.83.3521.622
YBX3-80M2-80.250.331.1565054.00.611.91.83.3521.623
YBX3-90S-80.370.51.4967062.00.611.91.84.0561.637
YBX3-90L-80.550.752.1767063.00.612.01.84.0561.639
YBX3-100L1-80.7512.4869068.70.672.01.84.0591.643
YBX3-100L2-81.11.53.5369070.70.672.01.85.0591.645
YBX3-112M-81.524.4169072.80.712.01.85.0611.655
YBX3-132S-82.236.0471077.90.712.01.86.0641.692
YBX3-132M-8347.9171078.90.732.01.86.0641.6109
YBX3-160M1-845.510.472079.90.732.01.96.0682.2150
YBX3-160M2-85.57.513.872082.00.742.01.96.0682.2151
YBX3-160L-87.51018.172084.00.752.01.96.0682.2181
YBX3-180L-8111525.872086.40.752.02.06.5702.2225
YBX3-200L-8152034.573086.90.762.02.06.6732.2294
YBX3-225S-818.52541.574089.10.762.01.96.6732.2321
YBX3-225M-8223047.874089.60.782.01.96.6732.2349
YBX3-250M-8304063.874090.40.792.01.96.5752.2488
YBX3-280S-8375078.374090.90.792.01.96.6762.2620
YBX3-280M-8456094.774091.40.792.01.96.6762.2695
YBX3-315S-8557511373592.30.802.01.86.6822.8945
YBX3-315M-87510015373593.20.802.01.86.4822.81139
YBX3-315L1-89012518373593.50.802.01.86.4822.81208
YBX3-315L2-811015021873593.50.822.01.86.4822.81344
YBX3-355S-813217526174093.80.822.01.86.4902.81911
YBX3-355M-816022031574094.00.822.01.86.4902.82168
YBX3-355L1-818525036574094.00.822.01.86.4902.82615
YBX3-355L2-820027038974094.20.832.01.86.4902.82751
YBX3-315S-10456010059091.20.752.01.36.2822.8987
YBX3-315M-10557512159091.80.752.01.36.2822.81139
YBX3-315L1-107510016259092.30.762.01.36.2822.81260
YBX3-315L2-109012519159092.90.772.01.36.2822.81313
YBX3-355S-109012519159092.90.772.01.36.2822.82279
YBX3-355M1-1011015023059093.10.782.01.36.0902.82457
YBX3-355M2-1013217527559093.50.782.01.36.0902.82531
YBX3-355L1-1016022033359093.50.782.01.36.0902.82814
YBX3-355L2-1018525038559093.50.782.01.36.0902.82900
注:重量為吊裝時的參考重量,以實物為準。
