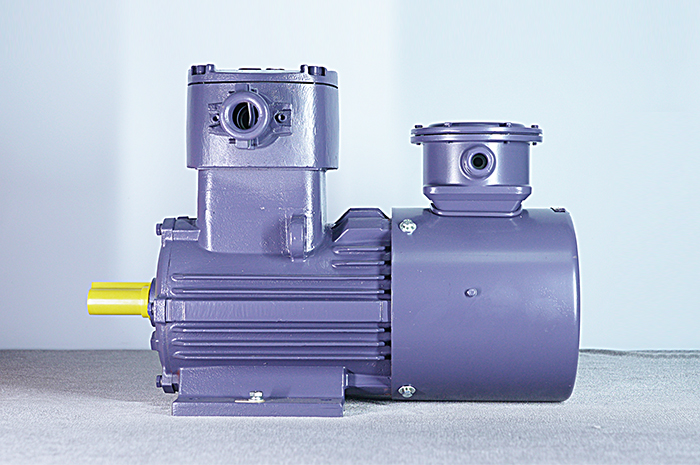

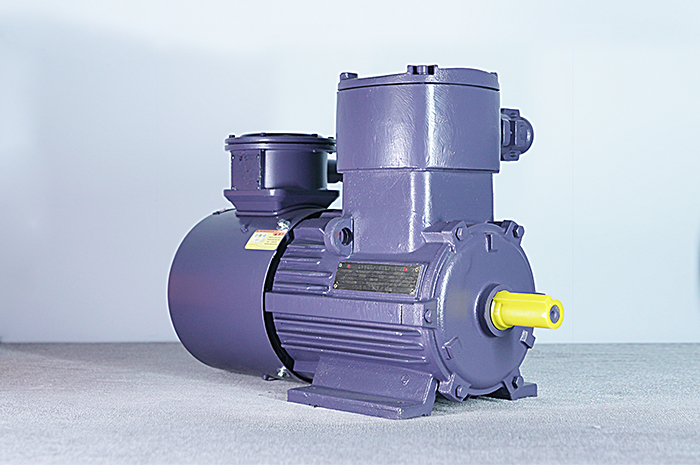

YBBP系列隔爆型變頻調速三相異步電動機

YBBP SERIES THREE PHASE FLAMEPROOF ASYNCHRONOUS VARIABLE FREQUENCY ADJUSTABLE-SPEED MOTORS YBBP系列隔爆型變頻調速三相異步電動機符合國家標準GB3836.1《爆炸性環境第1部分:設備通用要求》和GB38362《爆炸性環境第2部分:由隔爆外殼“d”保護的設備》的規定。電氣性能符合JB/T11201.1-2011《隔爆型變頻調速三相異步電動機技術條件第1部分:YBBP系列隔爆型變頻調速三相異步電動機(機座號80-355)》。電動機后部增加獨立冷卻風機,安裝尺寸與YB2、YB3、YBX3等系列電動機相同。電動機一般為380V、50Hz。

YBBP系列隔爆型變頻調速三相異步電動機與變頻裝置相配套,具有調速性能好、節能、溫升裕度大、壽命長、性能好、噪音低、隔煙結構先進、可靠性高、使用維護方便等優點,通過改變頻率而調速,調速范圍廣,過載能力強,適用于煤礦井下(非采掘工作面)及工廠含有的符合上述標準中規定的爆炸性氣體混合物的作業場所作電力拖動。電動機廣泛應用于輕工、紡織、化工、石油、冶金、機床、水泵等行業。



YBBP系列隔爆型變頻調速三相異步電動機安裝及外形尺寸


THE DIMENSIONS OF MOUNTING AND CONTOUR FOR YBBP SERIES FLAMEPROOF VARIABLE-FREQUENCY ADJUSTABLE-SPEED MOTORS
機座號 Frame size極數    Poles安裝尺寸(毫米)Mounting dimension(mm)外形尺寸(毫米)Contour dimension(mm)
HABCDEFGKABACADHDL
80M2、4、6、880125100501940615.510165165180320440
90S9014010056245082010180180180350490
90L9014012556245082010180180180350515
100L10016014063286082412205205180400560
112M11219014070286082412250230200420560
132S132216140893880103312280270200450600
132M132216178893880103312280270200450630
160M16025421010842110123714.5330325220520780
160L16025425410842110123714.5330325220520820
180M180279241121481101442.514.5355360220550895
180L180279279121481101442.514.5355360220550915
200L20031830513355110164918.5390400250645970
225S4、822535628614960140185318.54404502507101025
225M222535631114955110164918.54404502507101035
225M4、6、822535631114960140185318.54404502507101055
250M2250406349168601401853244955003007301085
250M4、6、8250406349168651401858244955003007301085
280S2280457368190651401858245455603008101210
280S4、6、8280457368190751402067.5245455603008101210
280M2280457419190651401858245455603008101275
280M4、6、8280457419190751402067.5245455603008101275
315S23155084062166514018582864063040010201270
315S4、6、8、103155084062168017022712864063040010201350
315M23155084572166514018582864063040010201390
315M4、6、8、103155084572168017022712864063040010201470
315L23155085082166514018582864063040010201390
315L4、6、8、103155085082168017022712864063040010201470
355S2
610500254751402067.52874575050011001570
355S4、6、8、10
6105002549517025862874575050011001630
355M2
610560254751402067.52874575050011001650
355M4、6、8、10
6105602549517025862874575050011001710
355L2
610630254751402067.52874575050011001800
355L4、6、8、10
6106302549517025862874575050011001820

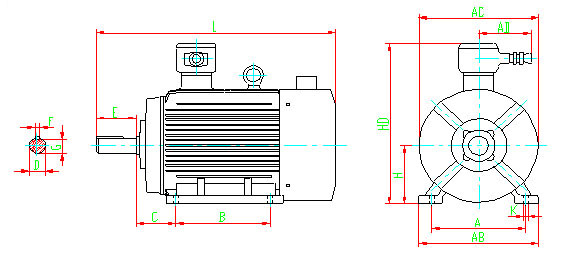

  注:1.圖為B3型圖樣,機座帶底腳,端蓋上無凸緣。
      2.H80-90無吊環。
Note:1.The drawing is B3 type with frame but no flange.
      2.H80-90 have no lifting bolts.



YBBP系列隔爆型變頻調速三相異步電動機技術數據


THE TECHNICAL SPECIFICATIONS OF YBBP SERIES FLAMEPROOF VARIABLE-FREQUENCY ADJUSTABLE-SPEED MOTORS
型號額定功率(KW)額定電流 (A)額定輸出轉矩  (N·m)轉速   (r/min)堵轉轉矩最大轉矩轉動慣量(kg·㎡)重量    (Kg)
額定轉矩額定轉矩
YBBP80M1-20.751.832.328502.22.30.000728
YBBP80M2-21.12.553.528402.22.30.000929
YBBP90S-21.53.434.728502.22.30.001334
YBBP90L-22.24.857.028502.22.30.001637
YBBP100L-236.249.528702.22.30.002945
YBBP112M-248.1312.728902.22.30.005857
YBBP132S1-25.511.017.529002.22.30.010990
YBBP132S2-27.514.923.829002.22.30.013195
YBBP160M1-21121.535.029402.22.40.0392142
YBBP160M2-21528.647.729402.22.40.0461150
YBBP160L-218.535.158.829402.22.40.0603172
YBBP180M-22241.070.029502.02.30.0719202
YBBP200L1-23055.495.429502.02.30.1254270
YBBP200L2-23767.9117.729502.02.30.1429285
YBBP225M-24582.1143.229602.02.30.2339349
YBBP250M-25599.8175.029702.02.30.3608463
YBBP280S-275134238.729702.02.30.5837614
YBBP280M-290160286.429702.02.30.7176690
YBBP315S-2110195350.129841.82.21.3254975
YBBP315M-2132233420.129841.82.21.51851090
YBBP315L1-2160282509.229841.82.21.79771180
YBBP315L2-2200352636.629841.82.22.17011265
YBBP355S1-2185327588.929801.82.22.43461630
YBBP355S2-2200352636.629801.82.22.69911700
YBBP355M1-2220387700.329801.62.22.96361900
YBBP355M2-2250438795.729801.62.23.22822060
YBBP355L1-2280491891.229801.62.23.47472500
YBBP355L2-23155511002.629801.62.23.72112650
YBBP80M1-40.551.573.513902.42.30.001829
YBBP80M2-40.752.034.713902.42.30.002130
YBBP90S-41.12.857.013902.32.30.002134
YBBP90L-41.53.689.513902.32.30.002739
YBBP100L1-42.25.0914.014202.32.40.005446
YBBP100L2-436.7319.014202.32.40.006750
YBBP112M-448.8025.414302.32.40.009555
YBBP132S-45.511.635.014502.32.40.021493
YBBP132M-47.515.447.714502.32.40.0296106
YBBP160M-41122.270.014602.22.40.0747148
YBBP160L-41530.095.414602.22.40.0918169
YBBP180M-418.536.5117.714702.22.30.139204
YBBP180L-42243.1140.014702.22.30.158225
YBBP200L-43057.6190.914702.22.40.263300
YBBP225S-43769.9235.514802.22.40.406324
YBBP225M-44584.7286.414802.22.40.469360
YBBP250M-455103350.114802.22.40.66487
YBBP280S-475140477.714802.22.41.12632
YBBP280M-490167572.914802.22.41.46737
YBBP315S-4110201700.214842.12.23.11985
YBBP315M-4132240840.314842.12.23.621160
YBBP315L1-41602881018.514842.12.24.131225
YBBP315L2-42003601273.214842.12.24.941320
YBBP355S1-41853331177.714882.12.25.611700
YBBP355S2-42003601273.214882.12.26.281800
YBBP355M1-42203961400.514882.12.26.952015
YBBP355M2-42504431591.514882.12.27.622045
YBBP355L1-42804971782.514882.12.27.662590
YBBP355L2-43155592005.214882.12.27.712770
YBBP80M1-60.371.273.58902.12.10.002323
YBBP80M2-60.551.765.28902.12.10.002624
YBBP90S-60.752.297.19102.12.10.002935
YBBP90L-61.13.1410.59102.12.10.003537
YBBP100L-61.53.9514.39302.12.10.006945
YBBP112M-62.25.5721.09402.12.10.013857
YBBP132S-637.3128.69702.12.40.028688
YBBP132M1-649.3938.19702.12.40.035798
YBBP132M2-65.512.652.59702.12.40.0449109
YBBP160M-67.516.871.69702.12.40.0881144
YBBP160L-61124.2105.09702.12.40.116172
YBBP180L-61531.6143.29802.12.10.207214
YBBP200L1-618.537.6176.69802.12.40.315250
YBBP200L2-62244.7210.09802.12.40.360280
YBBP225M-63057.6286.49802.12.40.547332
YBBP250M-63771.1353.39802.12.40.834468
YBBP280S-64585.9429.79902.12.41.39606
YBBP280M-655105525.19902.12.21.65665
YBBP315S-675142716.19872.02.04.11930
YBBP315M-690170859.49872.02.04.781040
YBBP315L1-61102071050.39872.02.05.451130
YBBP315L2-61322451260.49872.02.06.121230
YBBP355S-61602931527.89851.92.07.831820
YBBP355M1-61853391766.69851.92.07.861950
YBBP355M2-62003651909.89851.92.07.91990
YBBP355L1-62204022100.89851.92.08.12880
YBBP355L2-62504572387.29851.92.08.22910
YBBP80M1-80.180.862.26501.82.00.003221
YBBP80M2-80.251.133.16501.82.00.003522
YBBP90S-80.371.444.76701.82.00.003735
YBBP90L-80.552.077.06701.82.00.004337
YBBP100L1-80.752.369.56901.82.00.007741
YBBP100L2-81.13.3214.06901.82.00.008143
YBBP112M-81.54.4019.16901.82.00.016652
YBBP132S-82.25.8028.07101.82.20.031488
YBBP132M-837.7138.27101.82.20.0395104
YBBP160M1-8410.350.17201.92.20.0753143
YBBP160M2-85.513.470.07201.92.20.0931144
YBBP160L-87.517.695.57201.92.20.126172
YBBP180L-81125.3140.17201.92.20.203214
YBBP200L-81533.7191.07301.92.20.339280
YBBP225S-818.540.0235.57401.92.20.491306
YBBP225M-82247.4280.17401.92.20.547330
YBBP250M-83063.4382.07401.92.00.834465
YBBP280S-83777.8471.17401.82.01.39590
YBBP280M-84594.1573.07401.82.01.65662
YBBP315S-855111700.37401.82.04.79900
YBBP315M-875150955.07401.82.05.581085
YBBP315L1-8901801145.97401.82.06.371150
YBBP315L2-81102171400.57401.82.07.231280
YBBP355S-81322601680.67401.82.08.41820
YBBP355M-81603152037.17401.82.08.62065
YBBP355L1-81853642355.47401.82.08.72490
YBBP355L2-82003922546.47401.22.08.82620
YBBP315S-104599.6716.25921.22.05.47940
YBBP315M-1055121875.35921.22.06.261085
YBBP315L1-10751621193.65921.22.07.051200
YBBP315L2-10901911432.45921.22.07.911250
YBBP355S-10901911432.45851.22.09.082170
YBBP355M1-101102301750.65851.22.09.282340
YBBP355M2-101322752100.85851.22.09.482410
YBBP355L1-101603332546.45851.22.09.702680
YBBP355L2-101853812944.35851.22.09.952780
注:重量為吊裝時的參考重量,以實物為準。
